Thermosetting

Termosetting

Termofissatore BETA

BETA Thermosetting calenders

Nonwovens

Max tablewidth 7.000mm
Max temperature 220°C
Speed up to 600 m/min

Nontessuto

Features

All BETA thermosetting calenders for hot and cold treatments are equipped with standard rolls with an internal gap for diathermic oil or cooling liquid circulation.

  • Rolls designed on the Customers' requirements
  • Temperature deviation on the roll table ± 1°C
  • Automatic proportional pressure regulator
  • Steel chromium-plated surface
  • OPTIONAL: motor-driven rolls’ spacer devices
  • OPTIONAL: cross-axis, crown surface, hardening
Raffreddatore BETA

Threadings

Linear threading
Linear threading
"S" threading with pre-heating

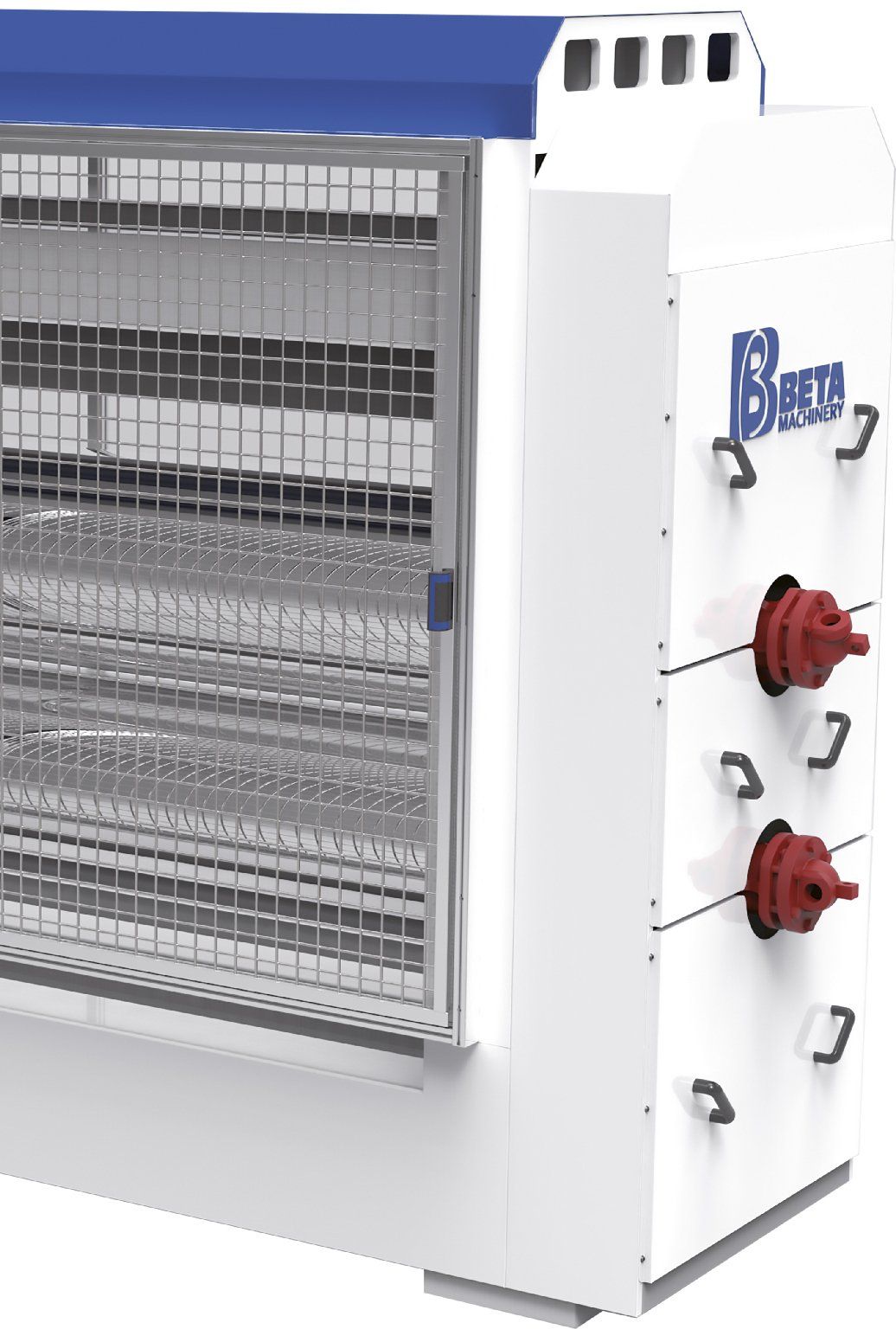

BETA Thermosetting calender
CROSS-AXIS

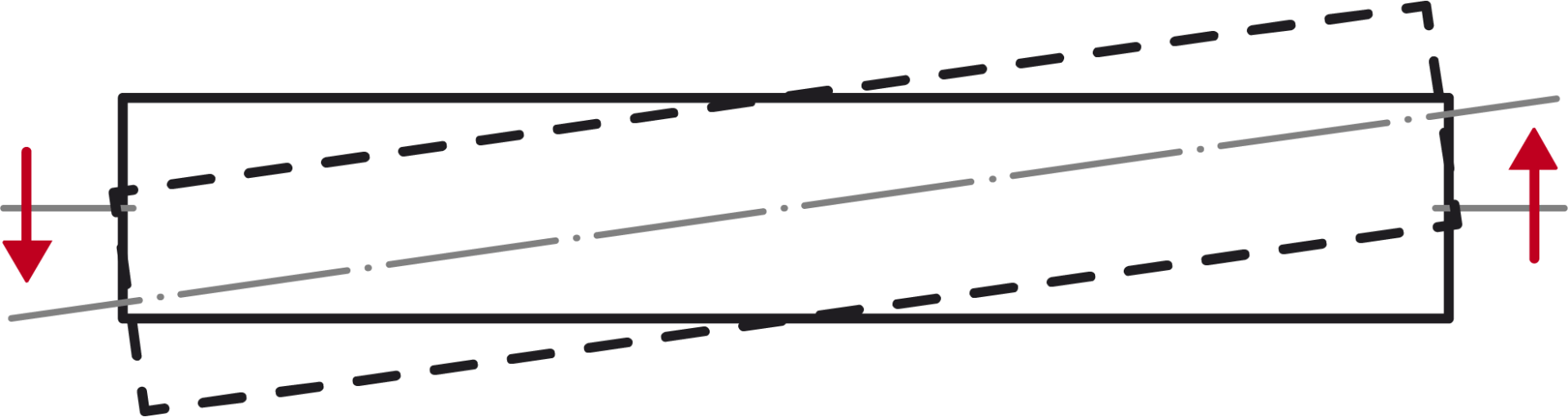

Cross-Axis Layout
The cross-axis system compensates for the roll bending under the pressure load.
It is used to obtain a uniform thickness of the web on the whole tablewidth. The movement of the roll is actuated by means of gear motors.

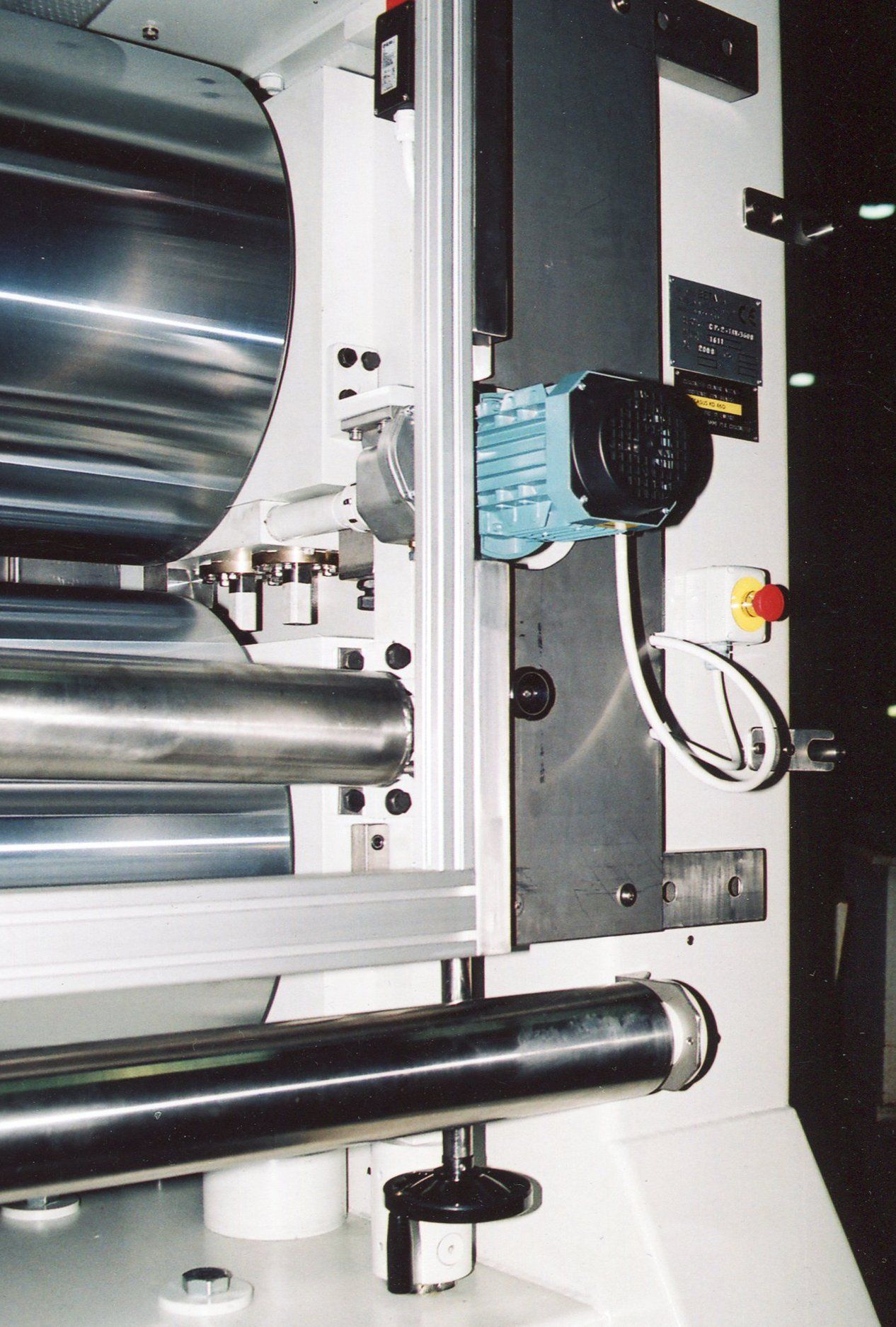

Detail of BETA thermosetting calender
