The frame of all these machines are available
in painted iron or Stainless Steel AISI 304.

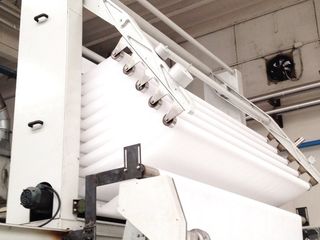

Accumulator w/ pivoting arms
- Counter-balanced arms
- Pneumatic drive with constant tension and adjustable value
- Driven guiding rollers
- Rubber coated roller for braking action

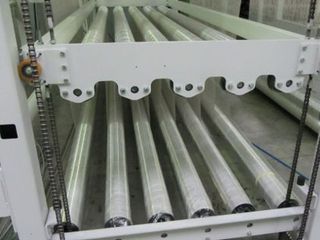

Vertical accumulator
- Pneumatic or hydraulic drive with constant tension and adjustable value
- Rubber coated roller for braking action
- Rubber coated rolls for fabric driving at exit

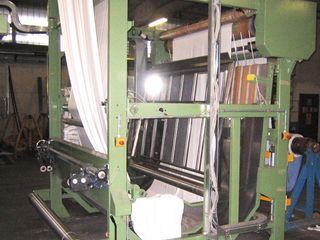

J-box accumulator
- Rubber coated roll for fabric driving
- Rubber coated roller for braking action
- Stainless steel slide
- Safety bar

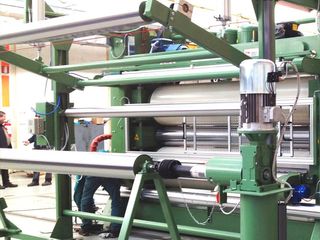

Axial Winder / Unwinder
- Driven by gear-motor with encoder and inverter
- Cardan joint
- Constant tension by torque control and servo-diameter

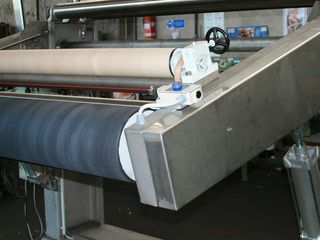

Tangential winder
- Driven by gear-motor with encoder and inverter
- Rubber coated roll for winding
- Constant tension by torque control or load cells
- Pneumatic control of arms’ pressure on fabric roll
- Curved rotating spreader roller or slats spreader roller
Folder device
- Driven by gear-motor with encoder and inverter
- Rubber coated roll for driving
- Oscillating arms for various folds’ width
- Driven guiding rollers
Combo Group
- Version with folder + tangential winder
- Version with folder + axial winder + loading arm

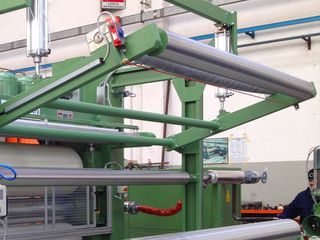

Loading arm
- Exit structure for axial winders
- Pivoting arms with idle roll (stainless steel or rubber coated) for giving load to fabric roll
- Pneumatic control of arms’ pressure on fabric roll
- Curved rotating spreader roller

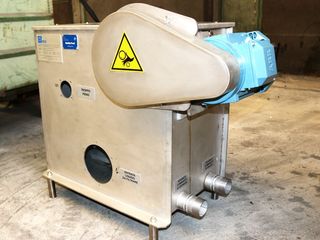

Self-cleaning Filter
- Filter for washing plants or padder troughs
- Automatic patented self-cleaning system
- High pressure blade jet (steam/water) for net disc cleaning
- Floating device at exit for commanding the cleaning system
- Lateral discharge of impurities
- Drive by gear-motor for rotation of net disc
- Various layouts about dimensions and connection flanges
