Calender
Equipressure Calender
Equipressure Calender

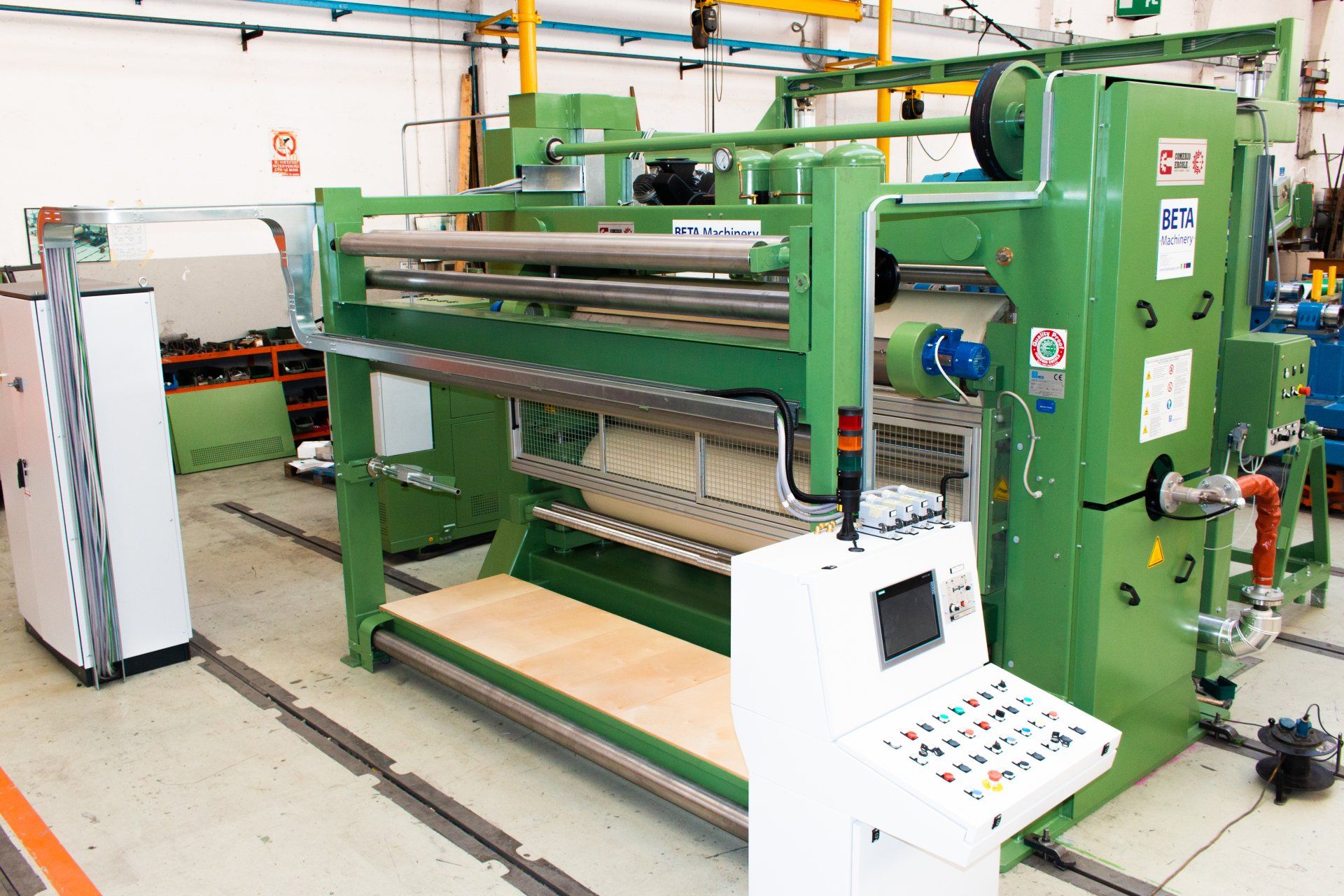

Equipressure BETA Calender
with Beta-Rolls
Equipressure BETA Calender
with Beta-Rolls
High Squeezing
for fabrics and nonwovens
High Squeezing
for fabrics and nonwovens
Features
Features
All BETA calenders for hot and cold treatment are equipped with the Beta-Roll®, our exclusive patented system for equipressure, with working pressure up to 300 N/mm, with an onboard 20-bar air compressore for the pressure system of the machine.
BETA High Pressure Calenders are ideal in the treatment of heavy felts or textile fabrics, when a very high squeeze is needed in combination with high temperature.
The design of our Calenders allows great accessibility for maintenance, cleaning, roll disassembling and threading.
- Zero roll deflection at every working pressure
- High squeezing efficiency (300 N/mm)
- High squeezing load (up to 90 ton)
- Temperature deviation on the roll table ± 1°C
- Max Temperature 220°C

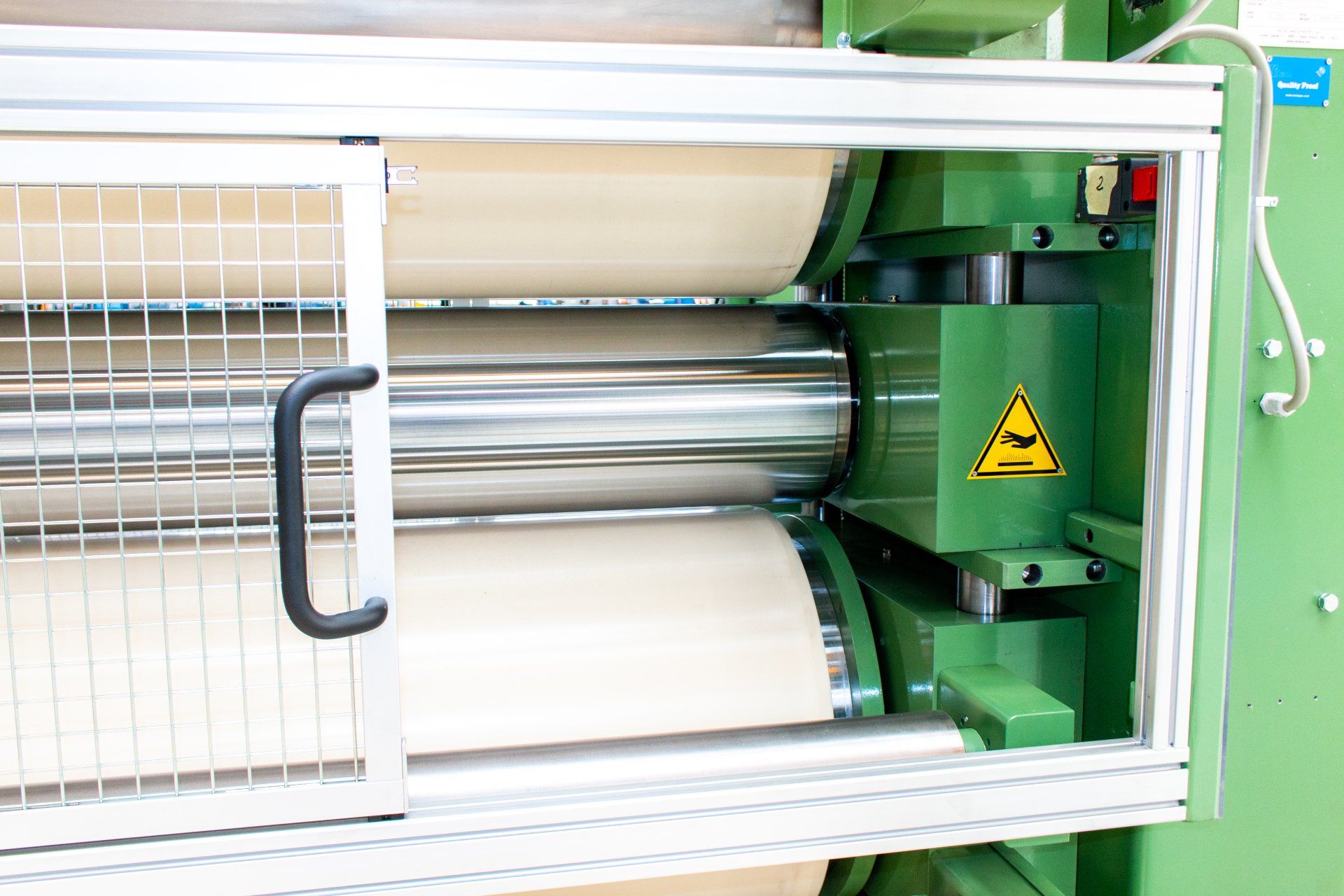

- Steel, nylon, cotton, and engraved rolls
- OPTIONAL: motor-driven rolls’ spacer devices

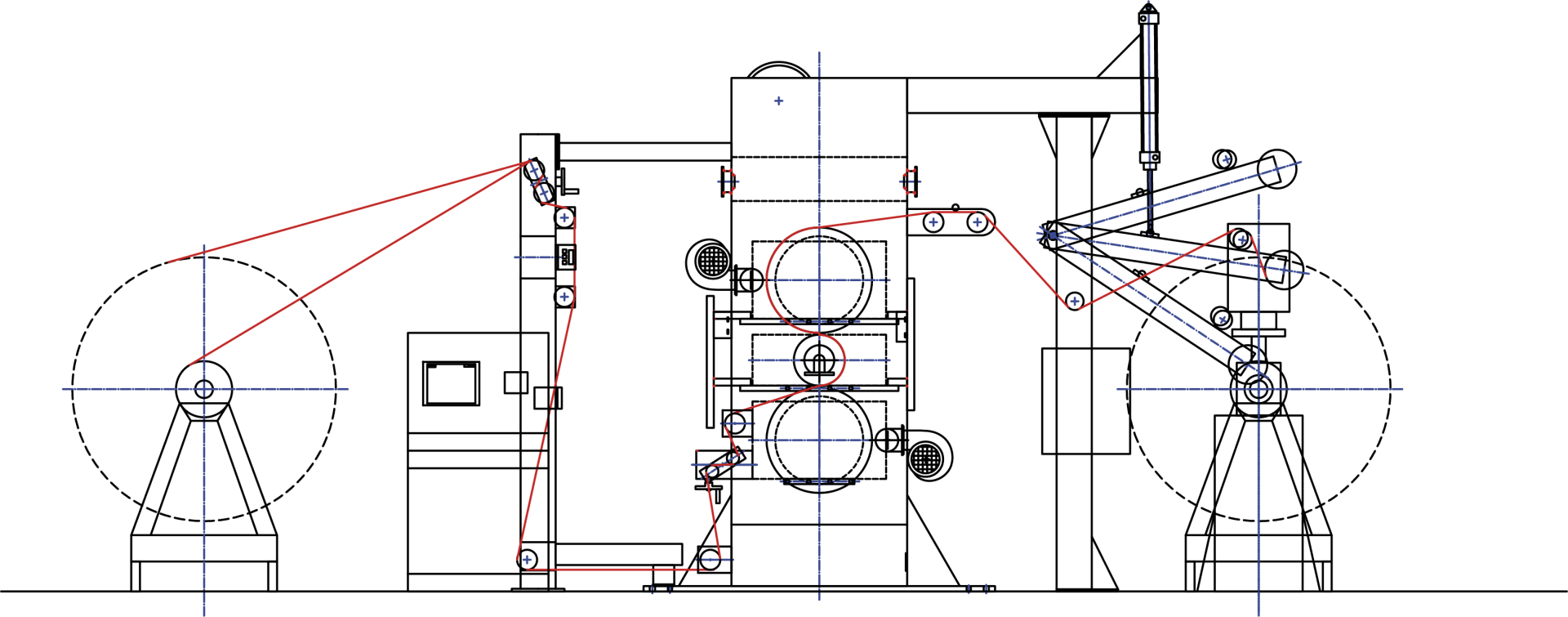

Layout
Layout
Steel / Steel Calender
- Linear or "S" threading
Steel / Nylon Calender
- Linear or "S" threading
Steel / Nylon / Steel Calender
Ideal for high squeezing.
The small diameter heated central roll allows a huge energy save compared to the traditional higher diameter rolls.

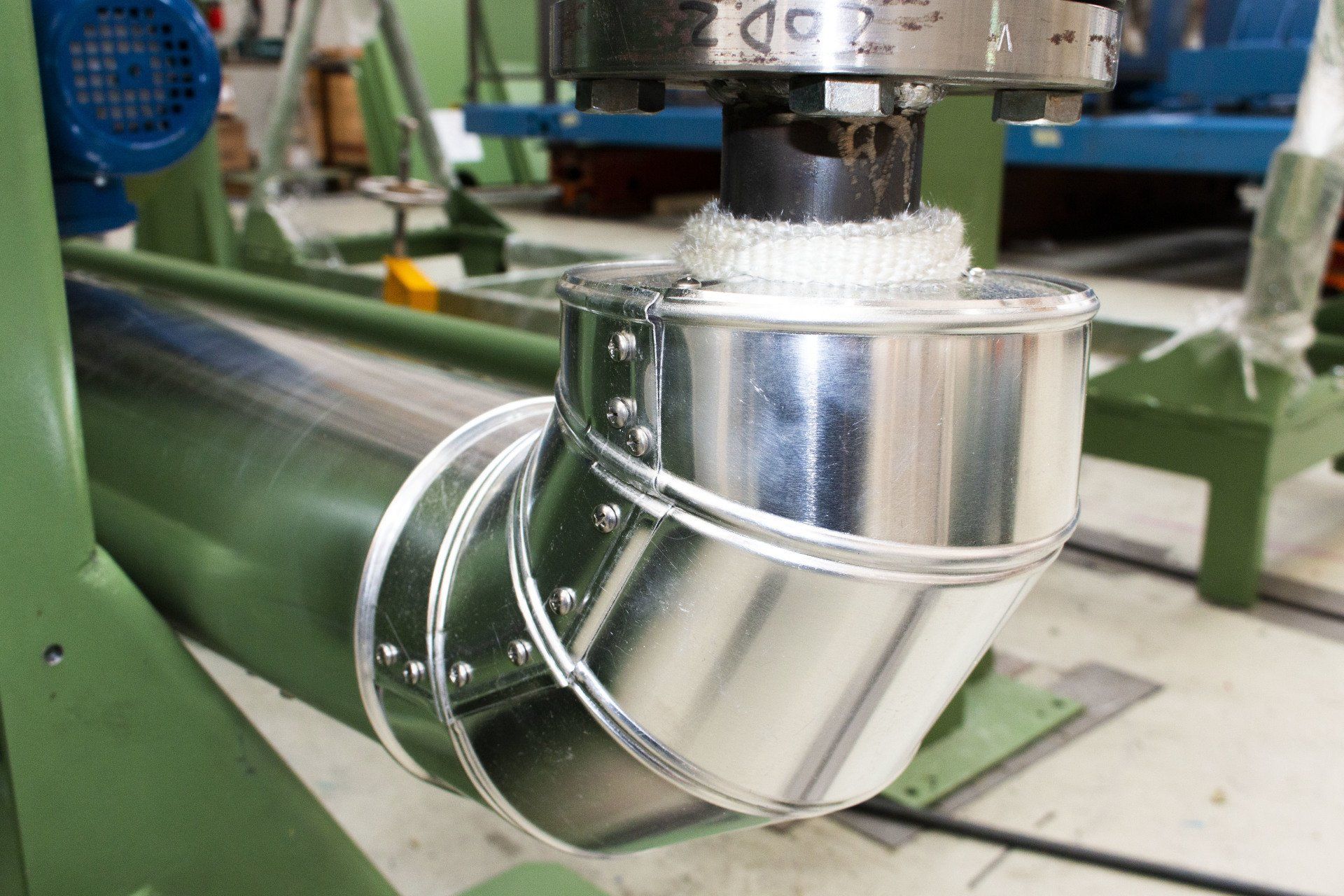

The heating of the steel rolls is through diathermic oil circulation up to 220°C.

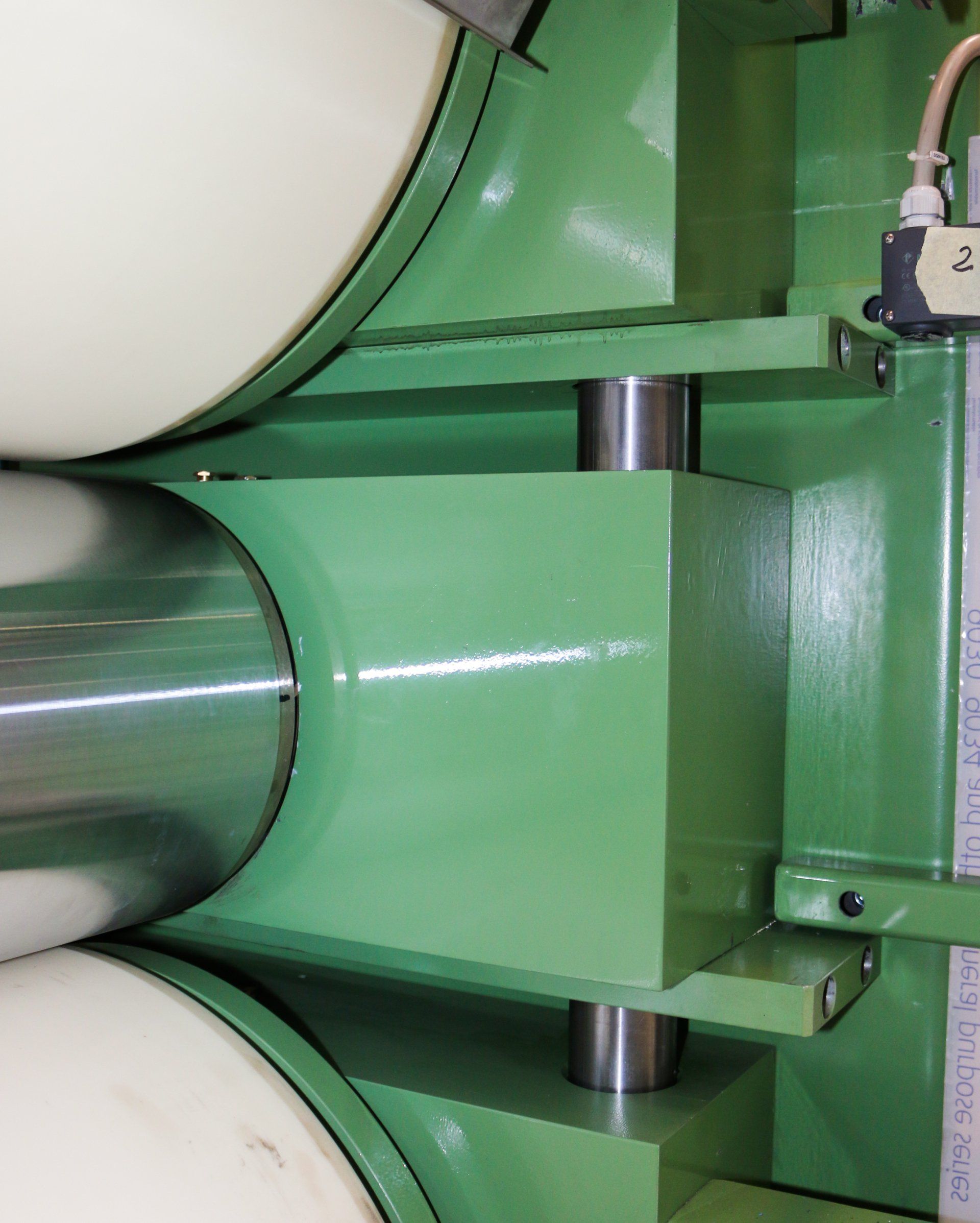

All BETA High Pressure Calenders have a 20-bar pneumatic system for putting the rolls under pressure. This assures a damping effect which protects the rolls’ from accidental damage.
